A general purpose gust lock for a metal web that has a hole for a rope to attach to the rudder gust lock. UV resistant plastic. The plastic will not scratch paint. This is for a quantiy of two half parts, one for the upper and one for the lower side of the elevator horn. Anti-chaff tape can be applied to one edge or both edges for paint protection. The anti-chaff tape is to extend into the slot will be captured there by design. The .032 inch alum strip width = 2.35 inch. This gust lock system requires two elevator gust locks for the typical setup, one for the left and right hand side, so if you are configuring as typical, buy two. An undrilled aluminum strip is an optional purchase and cam pins are available as seperate item on this website. See the Elevator Gust Lock - Metal Web, 3 hole, Installaton Guide on the Documentation Page.

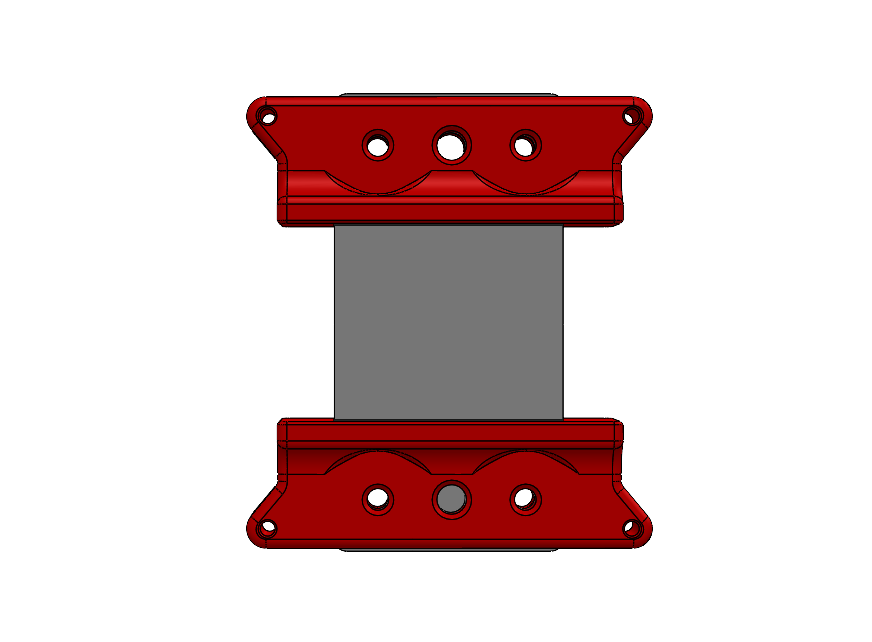

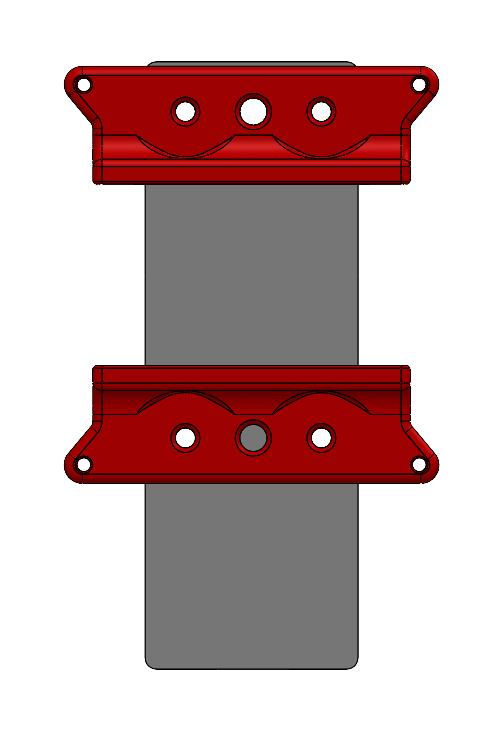

Note: This is for a quantiy of two half parts, one for the upper and one for the lower side of the elevator horn, exactly as shown in the first photo. -416 screws and nuts are included. If you need for both left and right hand sides, which you probably will if it is a typical setup, order two.
top of page
$78.00Price
