Version 3 Engine Baffle Ignition Wire Seal - Two Wire

Lycoming, Continental, and others

A part to pass spark plugs wires through the engine cooling air baffle.  This part has the exact same mounting hole spacing as the Slick version.   Uses #8 washer head screws (included).  Max temperature = 300 Fahrenheit.

A drill jig is recommended for drilling the holes to mount the seal because the holes have a line fit.  Using the seal as a drill jig may oversize the holes and reduce the tight clearance fit.  A free drill jig will be included with the purchase of two assemblies in order to complete the installation for the engine.

Note: These are priced and sold per assembly.  Each assembly contains 2 pieces.  The item will ship exactly as pictured.

Installation
Use #40 drill bit at drill jig to locate holes in sheet metal
     1.    Drill and then cleco each hole sequentially
Open sheet metal mounting holes to .166 - .175 inch dia.

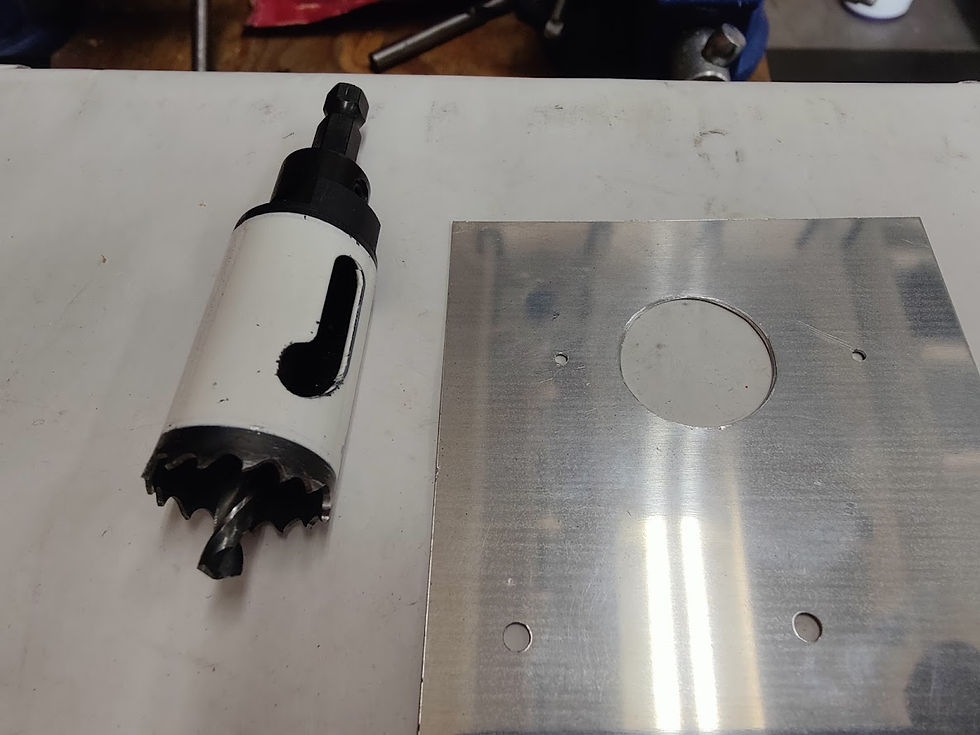

Open center hole as desired, typical 1.0 - 1.125 inch diameter
Recommend to use metal locking nuts
Torque AN525-832R10 screws to 10 in-lb or 1 N-m, consider metal lock nut running torque
